RIVERCREST^® WALL

Find a Dealer Request a Sample

Product Details Technical information Technologies

Colors

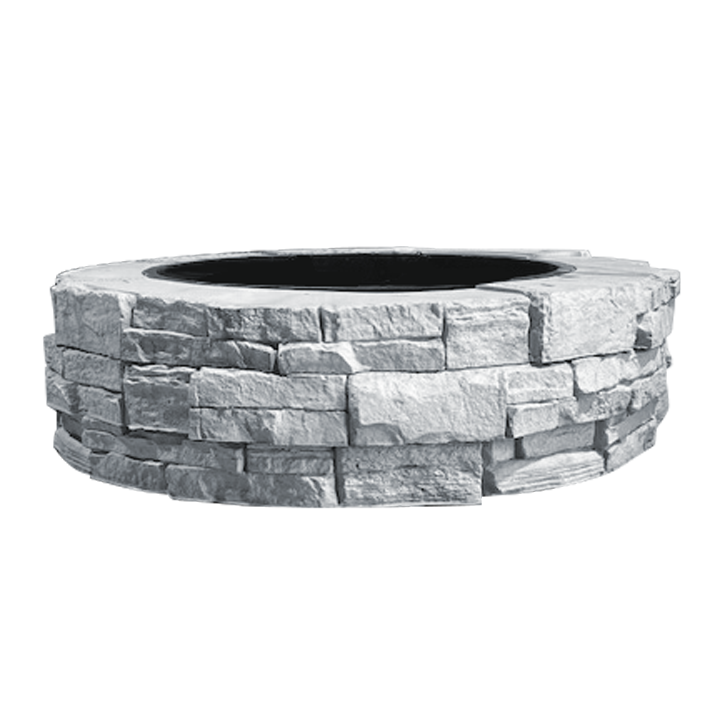

When stacked flagstone is the look that you and your customer have decided on, you’ll want to introduce Rivercrest as the best option to accomplish this. You get the character and flexibility of natural stone with the durability, affordability, and ease of installation of manufactured concrete. The innovative design lets you build walls and landscape features with speed and precision. Straight and curved walls are both achieved with the same units. Stick with the 57mm Standard Units for a pure flagstone look or incorporate 114mm Jumper Units for additional design options. Pillars can be built in a flash using the Rivercrest Rapid Pillar system. Save additional time by utilizing the fire pit kits and the pillar kits which assemble in minutes! Need to build a higher wall? No problem. We provide engineering assistance.

Calculate

Tech Sheet

Colors

Shape and size

Sold individually

PILLAR UNIT 20"X20"
500mm x 114mm x 500mm
19 3/4" x 4 1/2" x 19 3/4"

CORNER JUMPER
450mm x 114mm x 240mm
17 3/4" x 4 1/2" x 9 1/2"

Special order

PILLAR UNIT 20"X20"
500mm x 114mm x 500mm
19 3/4" x 4 1/2" x 19 3/4"

Special order

CORNER JUMPER
450mm x 114mm x 240mm
17 3/4" x 4 1/2" x 9 1/2"

Random Bundle

Special order

STANDARD UNIT 1
200mm x 57mm x 250mm
7 7/8" x 2 1/4" x 9 7/8"

Special order

STANDARD UNIT 2
310mm x 57mm x 250mm
12 1/4" x 2 1/4" x 9 7/8"

Special order

STANDARD UNIT 3
310mm x 57mm x 250mm
12 1/4" x 2 1/4" x 9 7/8"

Special order

STANDARD UNIT 4
425mm x 57mm x 250mm
16 3/4" x 2 1/4" x 9 7/8"

Special order

STANDARD UNIT 1
200mm x 57mm x 250mm
7 7/8" x 2 1/4" x 9 7/8"

Special order

STANDARD UNIT 2
310mm x 57mm x 250mm
12 1/4" x 2 1/4" x 9 7/8"

Special order

STANDARD UNIT 3
310mm x 57mm x 250mm
12 1/4" x 2 1/4" x 9 7/8"

Special order

STANDARD UNIT 4
425mm x 57mm x 250mm
16 3/4" x 2 1/4" x 9 7/8"

Special order

CORNER LONG
450mm x 57mm x 250mm
17 3/4" x 2 1/4" x 9 7/8"

Special order

CORNER SHORT
375mm x 57mm x 250mm
14 7/8" x 2 1/4" x 9 7/8"

Special order

CORNER LONG
450mm x 57mm x 250mm
17 3/4" x 2 1/4" x 9 7/8"

Special order

CORNER SHORT
375mm x 57mm x 250mm
14 7/8" x 2 1/4" x 9 7/8"

Special order

JUMPER UNIT 1
200mm x 114mm x 240mm
7 7/8" x 4 1/2" x 9 1/2"

Special order

JUMPER UNIT 2/3
310mm x 114mm x 240mm
12 1/4" x 4 1/2" x 9 1/2"

Special order

JUMPER UNIT 4
420mm x 114mm x 240mm
16 5/8" x 4 1/2" x 9 1/2"

Special order

JUMPER UNIT 1
200mm x 114mm x 240mm
7 7/8" x 4 1/2" x 9 1/2"

Special order

JUMPER UNIT 2/3
310mm x 114mm x 240mm
12 1/4" x 4 1/2" x 9 1/2"

Special order

JUMPER UNIT 4
420mm x 114mm x 240mm
16 5/8" x 4 1/2" x 9 1/2"

Special order

STANDARD UNIT 1
200mm x 57mm x 250mm
7 7/8" x 2 1/4" x 9 7/8"

Special order

STANDARD UNIT 2
310mm x 57mm x 250mm
12 1/4" x 2 1/4" x 9 7/8"

Special order

STANDARD UNIT 3
310mm x 57mm x 250mm
12 1/4" x 2 1/4" x 9 7/8"

Special order

STANDARD UNIT 4
425mm x 57mm x 250mm
16 3/4" x 2 1/4" x 9 7/8"

Special order

CORNER LONG
450mm x 57mm x 250mm
17 3/4" x 2 1/4" x 9 7/8"

Special order

CORNER SHORT
375mm x 57mm x 250mm
14 7/8" x 2 1/4" x 9 7/8"

Special order

JUMPER UNIT 1
200mm x 114mm x 240mm
7 7/8" x 4 1/2" x 9 1/2"

Special order

JUMPER UNIT 2/3
310mm x 114mm x 240mm
12 1/4" x 4 1/2" x 9 1/2"

Special order

JUMPER UNIT 4
420mm x 114mm x 240mm
16 5/8" x 4 1/2" x 9 1/2"

Technologies

EnduraColor

Applications

Fire Feature

Garden Wall

Outdoor Kitchen

Pillars

Retaining Wall

Seat Wall

Water Features

Technical information

Packaging
Things to know
Cross Sections

Select category

Packaging

Packaging
Things to know
Cross Sections

Unit Thickness (mm)

Layers per Bundle

FcFt per Bundle

FcFt per Layer

FcFt per Unit

Units per Bundle

Units per Layer

Lbs per Bundle

Lbs per Layer

Lbs per Unit

(57) RANDOM
Random Bundle

24.30

3.04

0.19

128

1,993

249.13

15.57

(57) CORNER
Random Bundle

16.21

4.05

0.41

1,172.66

293.17

29.32

(114) RANDOM JUMPER
Random Bundle

114

13.73

3.43

0.34

1,631.06

407.76

40.78

CORNER JUMPER

114

13.55

6.77

0.85

972.85

486.42

60.80

PILLAR UNIT 20"X20"

114

881.84

440.92

220.46

THINGS TO KNOW

Rivercrest Wall^®

Rivercrest Wall is a unique residential and commercial landscape wall block featuring a water-worn ledgestone appearance. The special integrated alignment system makes installation simple and painless for the professional landscaper or DIY. The unique shape and array of unit sizes & textures allows you to create virtually any shape or pattern you desire.

Applications – Design and build projects such as planters, steps, grill islands, pillars, seat walls and water features. Can be used for straight and curved installations (Radius 5’ is the tightest radius).

Capacity – Gravity walls up to 24” (60cm). Geogrid reinforced walls up to 6 ft. (1.8m).

Recommended Base Stabilization – one layer of DriveGrid^™ stabilization grid between subgrade and base material. Use under Standard Base or Permeable Base.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

Leveling – Leveling retaining wall blocks directly on top of gravel is tedious and generally does not yield the best results. U-Grip Base units or universal base pads are recommended under all Unilock walls for improved accuracy and speedier installation. Additional benefits include long term structural integrity and an overall better appearance. Poured concrete leveling pads, reinforced with rebar, are also a great way to accomplish leveling, particularly for larger installations. You must ensure that the concrete is poured and finished perfectly in order to achieve a good visual appearance.

Connection – features a unique integrated alignment connection. Use appropriate concrete adhesive for connection between units where required. Always read adhesive manufacturers’ directions prior to gluing.

Handling – No specific handling instructions.

Coping - This wall requires coping. Choose Rivercrest Coping or any of our natural stone coping options. Install with tight joints or 3/16” gap between units and amend with an exterior latex caulking. Cutting may be required; a diamond blade saw is required to cut coping properly. Glue all coping using a specially formulated concrete adhesive that is strong and will not break down over time. Always read adhesive manufacturers’ directions prior to gluing.

Detail Rivercrest Abutting Existing Structures

Detail Rivercrest Chainlink or Handrail on Top of Grid Wall

Detail Rivercrest Curved Walls

Detail Rivercrest Curve Transitions

Detail Rivercrest Drainage Swale on Top of Wall

Detail Rivercrest Drain at Base of Wall

Detail Rivercrest Drain Outlet Through Face of Wall

Detail Rivercrest Geogrid Installation Sequence

Detail Rivercrest Inside Corner Construction

Detail Rivercrest Integrated Stairs

Detail Rivercrest Outside Corner Construction

Detail Rivercrest Pillar and Seat Wall Integration

Detail Rivercrest Planter

Detail Rivercrest Raised Patio

Detail Rivercrest Seat Wall

Detail Rivercrest System Components

Detail Rivercrest Wood Fence on Top of Grid Wall

Rivercrest Grid Reinforced 3-1 Slope Load 1.9ft .57m

Rivercrest Grid Reinforced 3-1 Slope Load 2.1ft .63m

Rivercrest Grid Reinforced 3-1 Slope Load 2.4ft .74m

Rivercrest Grid Reinforced 3-1 Slope Load 2.8ft .85m

Rivercrest Grid Reinforced 3-1 Slope Load 3.2ft .97m

Rivercrest Grid Reinforced 3-1 Slope Load 3.5ft 1.08m

Rivercrest Grid Reinforced 3-1 Slope Load 3.9ft 1.2m

Rivercrest Grid Reinforced 3-1 Slope Load 4.3ft 1.31m

Rivercrest Grid Reinforced 3-1 Slope Load 4.7ft 1.43m

Rivercrest Grid Reinforced 3-1 Slope Load 5.1ft 1.54m

Rivercrest Grid Reinforced 3-1 Slope Load 5.4ft 1.65m

Rivercrest Grid Reinforced 3-1 Slope Load 5.8ft 1.77m

Rivercrest Grid Reinforced 3-1 Slope Load 6.2ft 1.88m

Rivercrest Grid Reinforced Horizontal Load 2.1ft .63m

Rivercrest Grid Reinforced Horizontal Load 2.4ft .74m

Rivercrest Grid Reinforced Horizontal Load 2.8ft .85m

Rivercrest Grid Reinforced Horizontal Load 3.2ft .97m

Rivercrest Grid Reinforced Horizontal Load 3.5ft 1.08m

Rivercrest Grid Reinforced Horizontal Load 3.9ft 1.2m

Rivercrest Grid Reinforced Horizontal Load 4.3ft 1.31m

Rivercrest Grid Reinforced Horizontal Load 4.7ft 1.43m

Rivercrest Grid Reinforced Horizontal Load 4.9ft 1.48m

Rivercrest Grid Reinforced Horizontal Load 5.1ft 1.54m

Rivercrest Grid Reinforced Horizontal Load 5.4ft 1.65m

Rivercrest Grid Reinforced Horizontal Load 5.8ft 1.77m

Rivercrest Grid Reinforced Horizontal Load 6.2ft 1.88m

Rivercrest No Grid 3-1 Slope Load 1.7ft .51m

Rivercrest No Grid Horizontal Load 1.3ft .4m

Rivercrest No Grid Horizontal Load 1.9ft .57m

Unique Technologies

EnduraColor

Since the 1990s, our EnduraColor pavers have made use of a special manufacturing process that helps retain color for years or even decades to come. It’s a proven process that Unilock introduced to North America well before any other manufacturer. With that kind of resilience in the pavers they choose, homeowners can rest assured knowing that their property will continue to stun friends, neighbors, and even potential buyers well into the future.
