Colors
Umbriano is a modern paver with incredible surface resilience, color retention and an integral sealant applied at the factory called EasyClean™which helps protect the surface from stains. With a surface that is smooth to the touch and yet not slippery, Umbriano is ideal for swimming pool applications. Your clients will be impressed when you introduce them to this contemporary paver that sports a granite-like appearance achieved with proprietary Unilock ColorFusion™ Technology. There is no other paver that performs like Umbriano.
Colors
Shape and size
Sold individually

4"X8"
100mm x 200mm x 60mm
3 7/8" x 7 7/8" x 2 3/8"

8"X8" HEX
205mm x 205mm x 60mm
8" x 8" x 2 3/8"

8"X8" HEX
205mm x 205mm x 60mm
8" x 8" x 2 3/8"

8"X8" HEX
200mm x 200mm x 70mm
7 7/8" x 7 7/8" x 2 3/4"

8"X8" HEX
200mm x 200mm x 70mm
7 7/8" x 7 7/8" x 2 3/4"

8"X8" HEX
200mm x 200mm x 70mm
7 7/8" x 7 7/8" x 2 3/4"

4"X12"
100mm x 300mm x 80mm
3 7/8" x 11 7/8" x 3 1/8"

4"X12"
100mm x 300mm x 80mm
3 7/8" x 11 7/8" x 3 1/8"

7"X14"
180mm x 360mm x 80mm
7" x 14 1/4" x 3 1/8"

7"X14"
180mm x 360mm x 80mm
7" x 14 1/4" x 3 1/8"

7"X14"
180mm x 360mm x 80mm
7" x 14 1/4" x 3 1/8"

8"X16"
200mm x 400mm x 70mm
7 7/8" x 15 3/4" x 2 3/4"

8"X16"
200mm x 400mm x 70mm
7 7/8" x 15 3/4" x 2 3/4"

8"X16"
200mm x 400mm x 70mm
7 7/8" x 15 3/4" x 2 3/4"

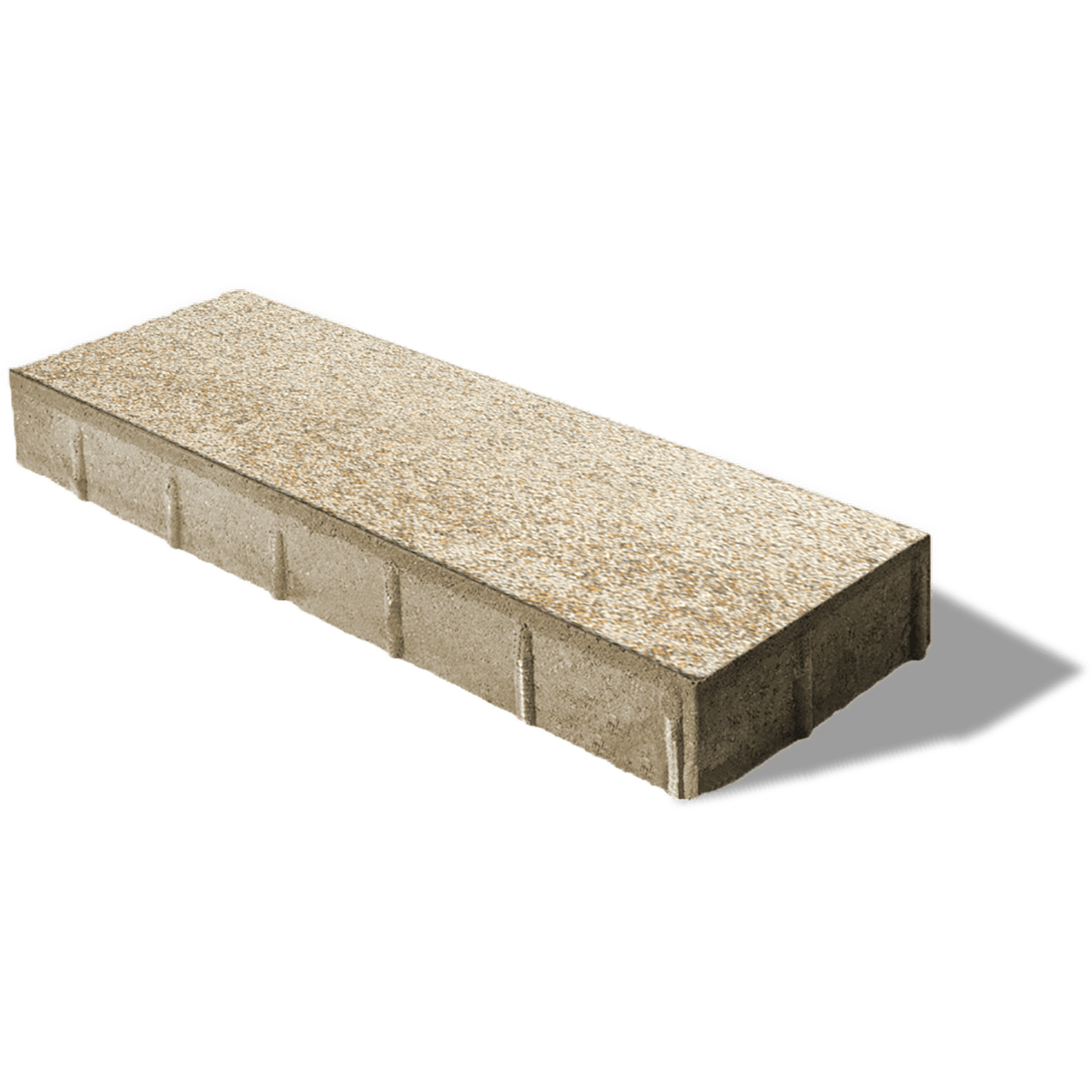

8"X24"
200mm x 600mm x 70mm
7 7/8" x 23 5/8" x 2 3/4"

8"X24"
200mm x 600mm x 70mm
7 7/8" x 23 5/8" x 2 3/4"

8"X24"
200mm x 600mm x 70mm
7 7/8" x 23 5/8" x 2 3/4"

8"X24"
200mm x 600mm x 70mm
7 7/8" x 23 5/8" x 2 3/4"

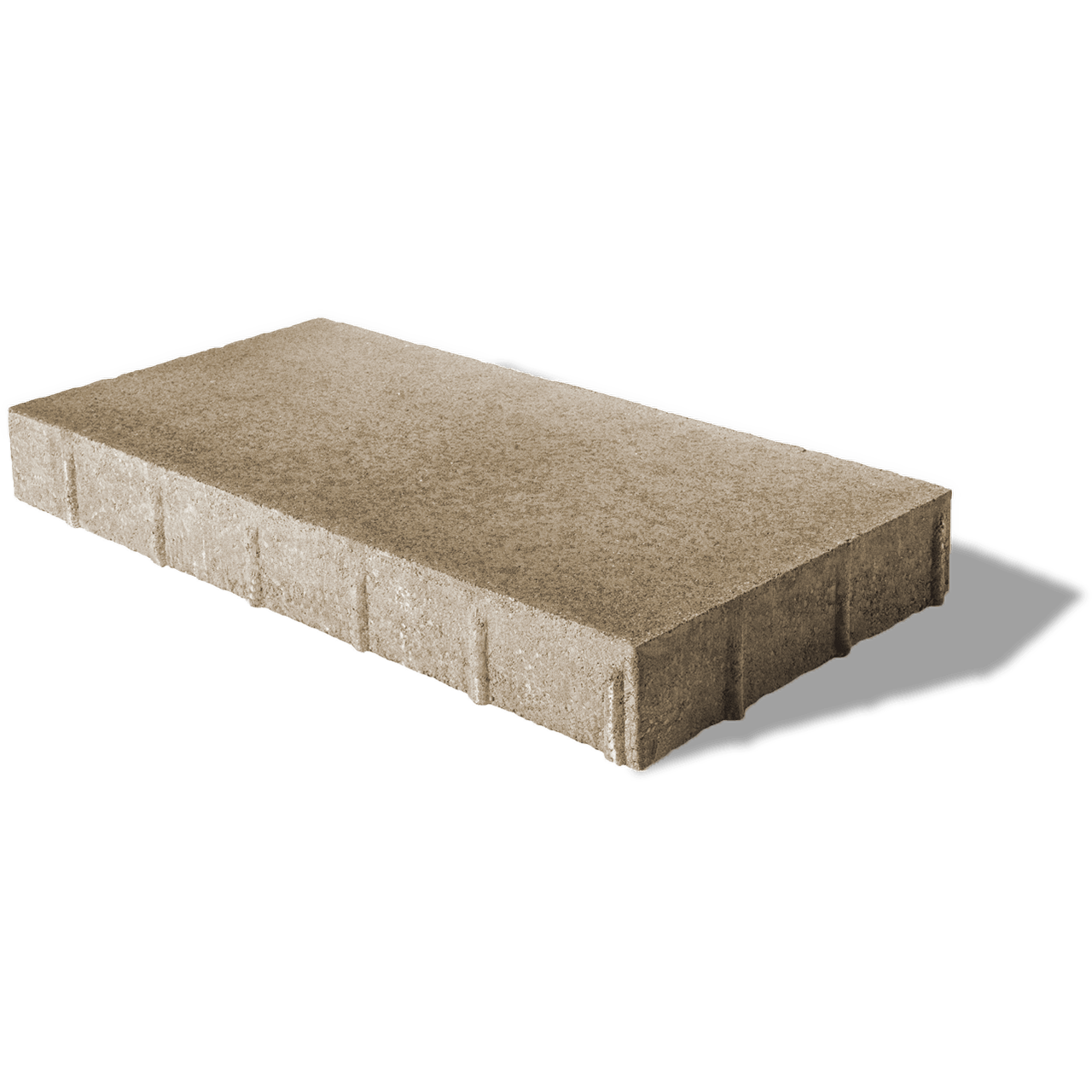

12"X24"
300mm x 600mm x 70mm
11 7/8" x 23 5/8" x 2 3/4"

12"X24"
300mm x 600mm x 70mm
11 7/8" x 23 5/8" x 2 3/4"

12"X24"
300mm x 600mm x 70mm
11 7/8" x 23 5/8" x 2 3/4"

16"X16"
400mm x 400mm x 70mm
15 3/4" x 15 3/4" x 2 3/4"

16"X16"
400mm x 400mm x 70mm
15 3/4" x 15 3/4" x 2 3/4"

16"X16"
400mm x 400mm x 70mm
15 3/4" x 15 3/4" x 2 3/4"

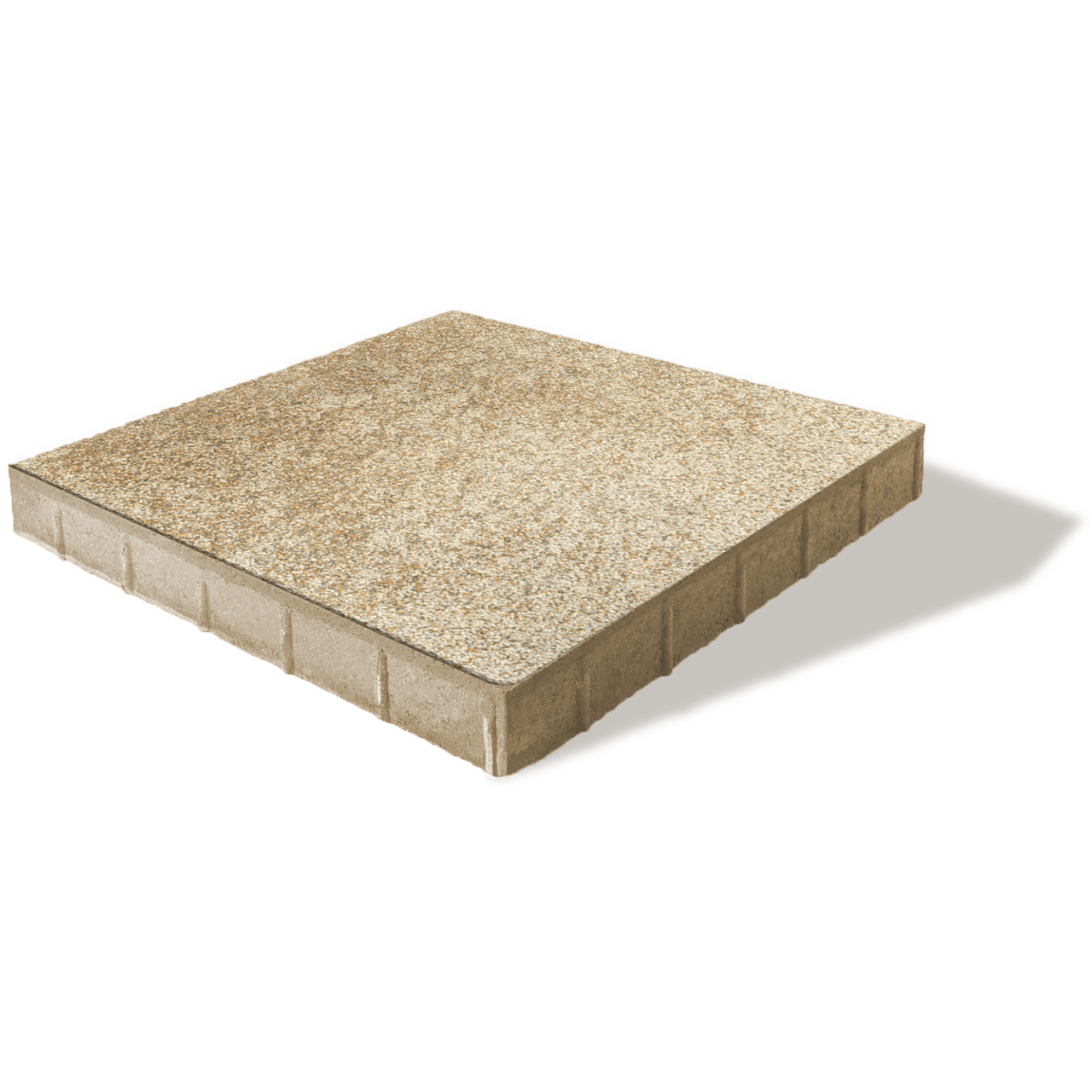

24"X24"
600mm x 600mm x 70mm
23 5/8" x 23 5/8" x 2 3/4"

24"X24"
600mm x 600mm x 70mm
23 5/8" x 23 5/8" x 2 3/4"

24"X24"
600mm x 600mm x 70mm
23 5/8" x 23 5/8" x 2 3/4"

COPING BULLNOSE
600mm x 60mm x 355mm
23 5/8" x 2 3/8" x 14"

COPING BULLNOSE
600mm x 60mm x 355mm
23 5/8" x 2 3/8" x 14"

COPING BULLNOSE
600mm x 60mm x 355mm
23 5/8" x 2 3/8" x 14"

COPING BULLNOSE
600mm x 60mm x 355mm
23 5/8" x 2 3/8" x 14"

COPING CHAMFERED
600mm x 60mm x 355mm
23 5/8" x 2 3/8" x 14"

COPING CHAMFERED
600mm x 60mm x 355mm
23 5/8" x 2 3/8" x 14"

COPING CHAMFERED
600mm x 60mm x 355mm
23 5/8" x 2 3/8" x 14"

COPING CHAMFERED
600mm x 60mm x 355mm
23 5/8" x 2 3/8" x 14"

COPING CHAMFERED
600mm x 60mm x 355mm
23 5/8" x 2 3/8" x 14"

XL
540mm x 900mm x 60mm
21 1/4" x 35 1/2" x 2 3/8"

XL
540mm x 900mm x 60mm
21 1/4" x 35 1/2" x 2 3/8"

XL
540mm x 900mm x 60mm
21 1/4" x 35 1/2" x 2 3/8"

4"X8"
100mm x 200mm x 60mm
3 7/8" x 7 7/8" x 2 3/8"

8"X8" HEX
205mm x 205mm x 60mm
8" x 8" x 2 3/8"

8"X8" HEX
200mm x 200mm x 70mm
7 7/8" x 7 7/8" x 2 3/4"

4"X12"
100mm x 300mm x 80mm
3 7/8" x 11 7/8" x 3 1/8"

7"X14"
180mm x 360mm x 80mm
7" x 14 1/4" x 3 1/8"

8"X16"
200mm x 400mm x 70mm
7 7/8" x 15 3/4" x 2 3/4"

8"X24"
200mm x 600mm x 70mm
7 7/8" x 23 5/8" x 2 3/4"

12"X24"
300mm x 600mm x 70mm
11 7/8" x 23 5/8" x 2 3/4"

16"X16"
400mm x 400mm x 70mm
15 3/4" x 15 3/4" x 2 3/4"

24"X24"
600mm x 600mm x 70mm
23 5/8" x 23 5/8" x 2 3/4"

COPING BULLNOSE
600mm x 60mm x 355mm
23 5/8" x 2 3/8" x 14"

COPING CHAMFERED
600mm x 60mm x 355mm
23 5/8" x 2 3/8" x 14"

XL
540mm x 900mm x 60mm
21 1/4" x 35 1/2" x 2 3/8"

Random Bundle

LARGE RECTANGLE
350mm x 546mm x 60mm
13 7/8" x 21 1/2" x 2 3/8"

SQUARE
360mm x 360mm x 60mm
14 1/4" x 14 1/4" x 2 3/8"

SMALL RECTANGLE
180mm x 360mm x 60mm
7" x 14 1/4" x 2 3/8"

LARGE RECTANGLE
350mm x 546mm x 60mm
13 7/8" x 21 1/2" x 2 3/8"

SQUARE
360mm x 360mm x 60mm
14 1/4" x 14 1/4" x 2 3/8"

SMALL RECTANGLE
180mm x 360mm x 60mm
7" x 14 1/4" x 2 3/8"

LARGE RECTANGLE
350mm x 546mm x 60mm
13 7/8" x 21 1/2" x 2 3/8"

SQUARE
360mm x 360mm x 60mm
14 1/4" x 14 1/4" x 2 3/8"

SMALL RECTANGLE
180mm x 360mm x 60mm
7" x 14 1/4" x 2 3/8"

LARGE RECTANGLE
350mm x 546mm x 80mm
13 7/8" x 21 1/2" x 3 1/8"

SQUARE
360mm x 360mm x 80mm
14 1/4" x 14 1/4" x 3 1/8"

SMALL RECTANGLE
180mm x 360mm x 80mm
7" x 14 1/4" x 3 1/8"

LARGE RECTANGLE
350mm x 546mm x 80mm
13 7/8" x 21 1/2" x 3 1/8"

SQUARE
360mm x 360mm x 80mm
14 1/4" x 14 1/4" x 3 1/8"

SMALL RECTANGLE
180mm x 360mm x 80mm
7" x 14 1/4" x 3 1/8"

LARGE RECTANGLE
350mm x 546mm x 60mm
13 7/8" x 21 1/2" x 2 3/8"

SMALL RECTANGLE
180mm x 360mm x 60mm
7" x 14 1/4" x 2 3/8"

SQUARE
360mm x 360mm x 60mm
14 1/4" x 14 1/4" x 2 3/8"

LARGE RECTANGLE
350mm x 546mm x 80mm
13 7/8" x 21 1/2" x 3 1/8"

SQUARE
360mm x 360mm x 80mm
14 1/4" x 14 1/4" x 3 1/8"

SMALL RECTANGLE
180mm x 360mm x 80mm
7" x 14 1/4" x 3 1/8"

LARGE RECTANGLE
350mm x 546mm x 60mm
13 7/8" x 21 1/2" x 2 3/8"

SQUARE
360mm x 360mm x 60mm
14 1/4" x 14 1/4" x 2 3/8"

SMALL RECTANGLE
180mm x 360mm x 60mm
7" x 14 1/4" x 2 3/8"

LARGE RECTANGLE
350mm x 546mm x 80mm
13 7/8" x 21 1/2" x 3 1/8"

SQUARE
360mm x 360mm x 80mm
14 1/4" x 14 1/4" x 3 1/8"

SMALL RECTANGLE
180mm x 360mm x 80mm
7" x 14 1/4" x 3 1/8"

Applications
Borders Accents e1632317158754
Borders and Accents
Heavy Dutty Vehicular e1632317142118
Commercial Vehicular
Permeable 5 e1632317125337
Permeable
Roadways Streets e1632317106171

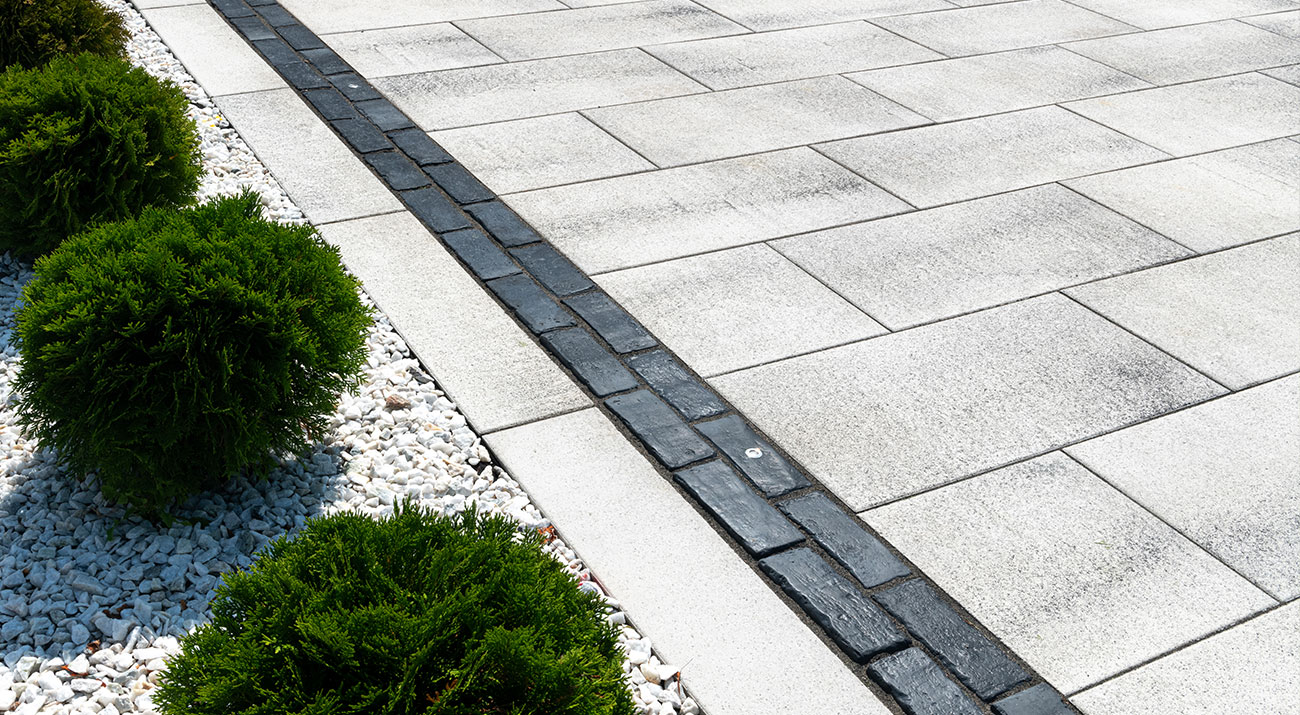

Residential Driveway
Pedestrian e1632317129849
Residential Pedestrian
Recommended Equipment
Unilift
Mini Ex Lifter
2 Man Lifter
Technical information
  • Laying Patterns
  • Packaging
  • Things to know
  • Cross Sections
Select category
Laying Patterns
  • Laying Patterns
  • Packaging
  • Things to know
  • Cross Sections
height_1Sq Ft per BundleSq Ft per LayerLayers per BundleLin Ft per Sq.Ft. - SailorLin Ft per Bundle - SailorUnits per Sq FtUnits per BundleUnits per LayerLbs per LayerLbs per BundleLbs per UnitLin Ft per Layer - SailorSq Ft per UnitLin Ft per Sq.Ft. - SoldierLin Ft per Bundle - SoldierLin Ft per Layer - SoldierLin Ft per Unit - SoldierLbs per SQFT
Random Bundle12"X24"16"X16"24"X24"8"X16"7"X14"4"X8"8"X8" HEX8"X24"Random Bundle4"X12"COPING CHAMFEREDCOPING BULLNOSEXL
Sq Ft per Bundle94.149382.676282.6773.2375106.273.9282.6773.2293.04 - - 62.76
Sq Ft per Layer10.4611.62510.333757.7510.3337510.462511.89.2410.3337510.4611.63 - - 10.46
Layers per Bundle98888798878666
Lin Ft per Sq.Ft. - Sailor0.846871.0160.761970.5081.523941.693343.0028 - 1.015960.846873.0467 - - 0.56458
Lin Ft per Bundle - Sailor79.7244394.4881662.9921631.49608125.98424124.01578318.89763 - 83.9895262.00789283.4645647.24447.24435.43306
Units per Sq Ft0.764820.516130.580620.258061.161241.433694.576272.59740.774160.764823.09544 - - 0.1912
Units per Bundle72484816961054861926456288242412
Units per Layer8662121554248836442
Lbs per Layer287.14451392.751349.625257.751343.25382.85458322.221306.25330.876382.85458425.56251.624251.624287
Lbs per Bundle2584.300583142.00827972062.00827462679.982062899.98924502647.0082679.982033404.481509.7441509.7441722
Lbs per Unit35.8930665.458558.27083128.875528.6041725.523645.9670612.7604241.359547.8568211.8211162.90662.906143.5
Lin Ft per Layer - Sailor8.8582711.811027.874023.9370115.7480317.7165435.43307 - 10.498698.8582735.433077.8747.8745.90551
Sq Ft per Unit1.30751.93751.722293.8750.861150.69750.218520.3851.291721.30750.32306 - - 5.23
Lin Ft per Sq.Ft. - Soldier - 0.5080.761970.5080.761970.846671.5014 - 0.50798 - 1.01556 - - 0.33873
Lin Ft per Bundle - Soldier - 47.2440862.9921631.4960862.9921662.00789159.44886 - 41.99472 - 94.48816 - - 21.25866
Lin Ft per Layer - Soldier - 5.905517.874023.937017.874028.8582717.71654 - 5.24934 - 11.81102 - - 3.54311
Lin Ft per Unit - Soldier - 0.984251.312341.968510.656170.590550.32808 - 0.65617 - 0.32808 - - 1.77156
Lbs per SQFT - - - - - - - - 32.01897 - - - - -
THINGS TO KNOW

Umbriano

Umbriano is the ideal pool deck, patio or driveway paver. Umbriano is unaffected by chlorine, salt pool water and is resistant to de-icing salts as well. The clean, sleek and modern lines make it the most contemporary paver available. Umbriano also has Easy Clean Technology allowing for quick cleanup of food and other dirty spills!

Recommended Base Stabilization – one layer of DriveGrid™" stabilization grid between subgrade and base material. Recommended depth 8” to 10” below pavers for maximum stability and performance. Use under Standard Base or Permeable Base.

Special Note: To achieve applications other than the recommended based on concrete paver aspect ratio alone, additional base structures such as Drivecell and Trass base may be utilized. Contact your local representative for more information.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Standard Bedding Course – 1” thick of coarse sand– in accordance with ASTM-D2940 screeded over base.

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

Alternative Permeable Bedding Course – 1” thick of 1/4” clear open-graded chip stone – (ASTM No. 8) screeded over base.

Special Note: Concrete Direct Overlay – In some areas of the country and in some applications pavers are very successfully placed directly over concrete. Concrete as a base is in itself quite strong, but it can affect the structural integrity of the paver particularly in vehicular applications, where the concrete below is sub-par. The following considerations must be taken into account to insure that the concrete below the surface is ideal:

  1. Concrete integrity – concrete must be in good condition, and not crumbling
  2. Drainage slope – concrete below must be sloped away from all buildings and structures
  3. Drainage holes – In lowest areas of the concrete, drill 1” holes in concrete (on 12” centers) and fill holes with ¼” chip (ASTM No. 8)
  4. Base drainage - the area below the concrete must not be subject to frost movement
  5. Surface - surface must be totally smooth and flat equivalent to the desired finished surface
  6. Waterproofing - may be required when installing pavers over concrete where there is a basement or cold cellar below. Install an impervious rubber membrane over the surface prior to installing any pavers over the surface.
  7. Jointing Sand - Use an impervious polymeric sand when installing over concrete

Jointing Material and Joint Stabilization

All sands must meet ASTM C144 or C33 Specifications. For best appearance and optimal performance,, keep jointing materials approximately 1/8” below the chamfer (bevel edge) of the paver.

Good Option: Ordinary sharp jointing sand in accordance with ASTM C144 or C33. (Common name: Concrete Sand)

Best Option: Any polymeric sand or ordinary concrete sand stabilized by a water-based or solvent-based joint sand stabilizer sealer. Always follow manufacturer’s application specifications and requirements.

Handling – Exercise caution when handling this product, as contact between its zero-bevel edges may cause damage. Larger units should be placed mechanically with a vacuum lifter.

Edge Restraint - Always install an edge restraint around the perimeter of any paver installation not restrained by building structures. Spike-in edge restraints come in plastic and metal and work well for most applications. A concrete curb or a sub-surface concrete wedge can also be installed to retain the edge.

Paver Compaction - Always use a protective polymer pad on the bottom of your compactor when doing the final compaction of the pavers. An alternative is to use a rubber-roller compactor for the final compaction.

Cleaners – Any cleaner specifically designed for pavers may be used for color restoration or general cleaning. Follow manufacturer’s dilution rates and application procedures. Always test a small area to make sure the results are as expected.

 Sealers

  • Product may be sealed for aesthetic or cleanliness reasons but it is not required
  • Use any sealer approved for concrete pavers
  • Select type for desired aesthetics
  • Product must be cleaned before sealing
  • Always read and follow manufacturer’s application procedures
  • Always test a small area to make sure the results are as expected

The Americans with Disabilities Act Accessibility Guidelines (ADAAG) provides measurable criteria to determine compliance, not individual product evaluation. Gaps, joints or openings, greater than ½” horizontal and ¼” vertical should be avoided as they can disrupt wheelchair maneuvering (United States Access Board – Guidelines and Standards).

Download Technical Sheet
Product Videos
Videos
Umbriano - Feature Benefits
Share
Email
With the sleek, modern and contemporary look of natural granite, Umbriano pavers from Unilock are a great choice to put a modern look into your outdoor space.
