Colors

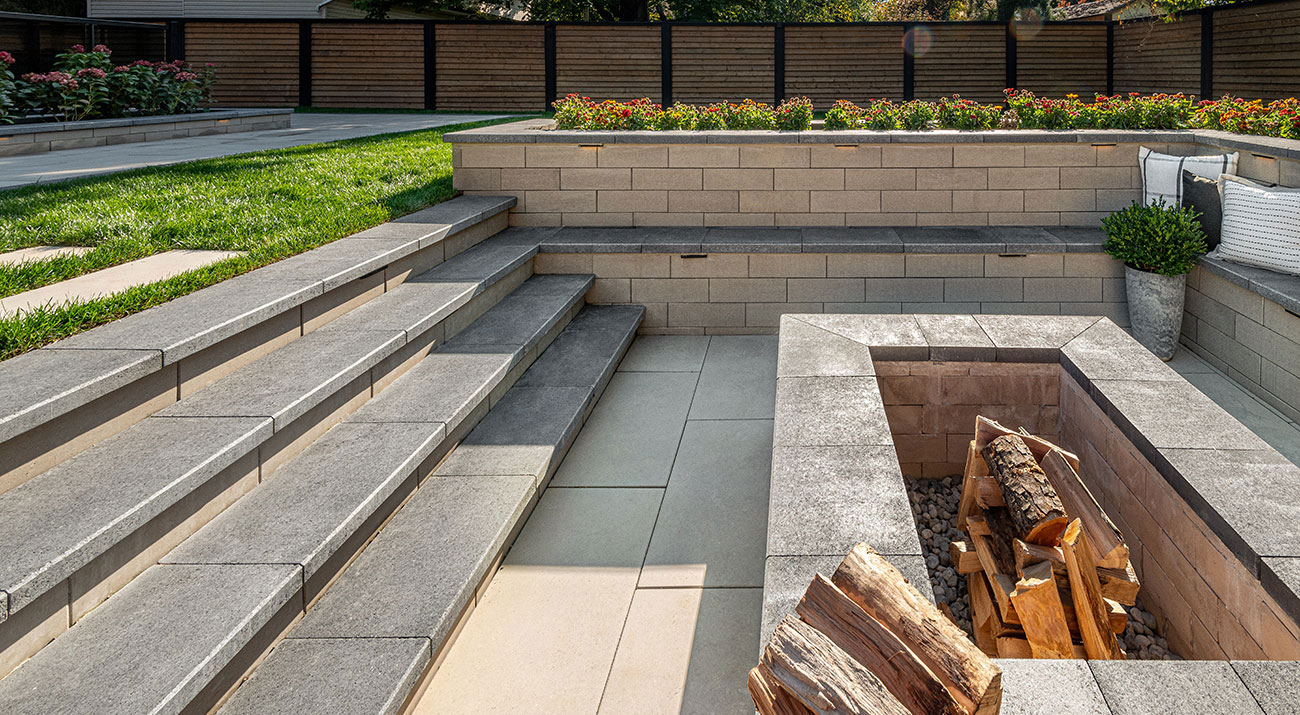

The granite-like appearance of Umbriano makes it a popular choice for sleek, modern landscape paving projects. It’s unique, mottled surface is achieved with ColorFusion™ Technology that randomly disperses rich color and granite particles. This creates a natural look with a non-slip texture. Umbriano is factory-sealed during the manufacturing process with EasyClean™, an integral surface protection from stains. These features make it ideal for use in high-traffic commercial and residential projects and highly compatible with Umbriano coping and wall products.
Colors
Shape and size
Sold individually

4"X8"
100mm x 200mm x 60mm
3 7/8" x 7 7/8" x 2 3/8"

8"X8" HEX
205mm x 205mm x 60mm
8" x 8" x 2 3/8"

8"X8" HEX
205mm x 205mm x 60mm
8" x 8" x 2 3/8"

8"X8" HEX
205mm x 205mm x 60mm
8" x 8" x 2 3/8"

XL
570mm x 950mm x 60mm
22 1/2" x 37 1/2" x 2 3/8"

XL
570mm x 950mm x 60mm
22 1/2" x 37 1/2" x 2 3/8"

XL
570mm x 950mm x 60mm
22 1/2" x 37 1/2" x 2 3/8"

4"X8"
100mm x 200mm x 60mm
3 7/8" x 7 7/8" x 2 3/8"

8"X8" HEX
205mm x 205mm x 60mm
8" x 8" x 2 3/8"

XL
570mm x 950mm x 60mm
22 1/2" x 37 1/2" x 2 3/8"

Random Bundle

LARGE RECTANGLE
380mm x 570mm x 60mm
15" x 22 1/2" x 2 3/8"

SMALL RECTANGLE
190mm x 380mm x 60mm
7 1/2" x 15" x 2 3/8"

SQUARE
380mm x 380mm x 60mm
15" x 15" x 2 3/8"

LARGE RECTANGLE
380mm x 570mm x 60mm
15" x 22 1/2" x 2 3/8"

SMALL RECTANGLE
190mm x 380mm x 60mm
7 1/2" x 15" x 2 3/8"

SQUARE
380mm x 380mm x 60mm
15" x 15" x 2 3/8"

LARGE RECTANGLE
380mm x 570mm x 60mm
15" x 22 1/2" x 2 3/8"

SMALL RECTANGLE
190mm x 380mm x 60mm
7 1/2" x 15" x 2 3/8"

SQUARE
380mm x 380mm x 60mm
15" x 15" x 2 3/8"

LARGE RECTANGLE
380mm x 570mm x 60mm
15" x 22 1/2" x 2 3/8"

SQUARE
380mm x 380mm x 60mm
15" x 15" x 2 3/8"

SMALL RECTANGLE
190mm x 380mm x 60mm
7 1/2" x 15" x 2 3/8"

LARGE RECTANGLE
380mm x 570mm x 60mm
15" x 22 1/2" x 2 3/8"

SMALL RECTANGLE
190mm x 380mm x 60mm
7 1/2" x 15" x 2 3/8"

SQUARE
380mm x 380mm x 60mm
15" x 15" x 2 3/8"

Applications
Borders Accents e1632317158754
Borders and Accents
Heavy Duty Vehicular
Light Duty Vehicular
Pedestal or Overlay
Permeable 5 e1632317125337
Permeable
Pedestrian e1632317129849
Residential & Commercial Pedestrian
Roadways Streets e1632317106171
Residential Driveway
Recommended Equipment
Unilift
Mini Ex Lifter
2 Man Lifter
Technical information
  • Laying Patterns
  • Packaging
  • Things to know
  • Cross Sections
Select category
Laying Patterns
  • Laying Patterns
  • Packaging
  • Things to know
  • Cross Sections
LP Umbriano Multi Unit Random G pdf
LP Umbriano Multi Unit Random G pdf
LP Umbriano Fixed Random A pdf
LP Umbriano Fixed Random A pdf
LP Umbriano Fixed Random B pdf
LP Umbriano Fixed Random B pdf
Unit Thickness (mm)
Layers per Bundle
Sq Ft per Bundle
Sq Ft per Layer
Sq Ft per Section
Sq Ft per Unit
Units per Bundle
Units per Layer
Units per Section
Lin Ft per Bundle - Soldier
Lin Ft per Section - Soldier
Lin Ft per Layer - Soldier
Lin Ft per Unit - Soldier
Lin Ft per Bundle - Sailor
Lin Ft per Section - Sailor
Lin Ft per Layer - Sailor
Lin Ft per Unit - Sailor
Lbs per Bundle
Lbs per Layer
Lbs per Section
Lbs per Unit
(60) RANDOM
Random Bundle
60
10
116.57
11.66
-
1.46
80
8
-
-
-
-
-
93.50
-
9.35
1.17
3,199.26
319.93
-
39.99
XL
60
10
116.57
11.66
-
5.83
20
2
-
37.40
-
3.74
1.87
62.30
-
6.23
3.12
3,199.26
319.93
-
159.96
4"X8"
60
10
118
11.80
19.67
0.22
540
54
90
177.17
29.53
17.72
0.33
354.33
59.06
35.43
0.66
3,201
320.10
533.50
5.93
8"X8" HEX
60
10
108.31
10.83
-
0.45
240
24
-
-
-
-
-
-
-
-
-
2,762
276.20
-
11.51
THINGS TO KNOW

Umbriano

Umbriano is the ideal pool deck, patio or driveway paver. Umbriano is unaffected by chlorine, salt pool water and is resistant to de-icing salts as well. The clean, sleek and modern lines make it the most contemporary paver available. Umbriano also has Easy Clean Technology allowing for quick cleanup of food and other dirty spills!

Recommended Base Stabilization – one layer of DriveGrid™" stabilization grid between subgrade and base material. Recommended depth 8” to 10” below pavers for maximum stability and performance. Use under Standard Base or Permeable Base.

Special Note: To achieve applications other than the recommended based on concrete paver aspect ratio alone, additional base structures such as Drivecell and Trass base may be utilized. Contact your local representative for more information.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Standard Bedding Course – 1” thick of coarse sand– in accordance with ASTM-D2940 screeded over base.

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

Alternative Permeable Bedding Course – 1” thick of 1/4” clear open-graded chip stone – (ASTM No. 8) screeded over base.

Special Note: Concrete Direct Overlay – In some areas of the country and in some applications pavers are very successfully placed directly over concrete. Concrete as a base is in itself quite strong, but it can affect the structural integrity of the paver particularly in vehicular applications, where the concrete below is sub-par. The following considerations must be taken into account to insure that the concrete below the surface is ideal:

  1. Concrete integrity – concrete must be in good condition, and not crumbling
  2. Drainage slope – concrete below must be sloped away from all buildings and structures
  3. Drainage holes – In lowest areas of the concrete, drill 1” holes in concrete (on 12” centers) and fill holes with ¼” chip (ASTM No. 8)
  4. Base drainage - the area below the concrete must not be subject to frost movement
  5. Surface - surface must be totally smooth and flat equivalent to the desired finished surface
  6. Waterproofing - may be required when installing pavers over concrete where there is a basement or cold cellar below. Install an impervious rubber membrane over the surface prior to installing any pavers over the surface.
  7. Jointing Sand - Use an impervious polymeric sand when installing over concrete

Jointing Material and Joint Stabilization

All sands must meet ASTM C144 or C33 Specifications. For best appearance and optimal performance,, keep jointing materials approximately 1/8” below the chamfer (bevel edge) of the paver.

Good Option: Ordinary sharp jointing sand in accordance with ASTM C144 or C33. (Common name: Concrete Sand)

Best Option: Any polymeric sand or ordinary concrete sand stabilized by a water-based or solvent-based joint sand stabilizer sealer. Always follow manufacturer’s application specifications and requirements.

Handling – Exercise caution when handling this product, as contact between its zero-bevel edges may cause damage. Larger units should be placed mechanically with a vacuum lifter.

Edge Restraint - Always install an edge restraint around the perimeter of any paver installation not restrained by building structures. Spike-in edge restraints come in plastic and metal and work well for most applications. A concrete curb or a sub-surface concrete wedge can also be installed to retain the edge.

Paver Compaction - Always use a protective polymer pad on the bottom of your compactor when doing the final compaction of the pavers. An alternative is to use a rubber-roller compactor for the final compaction.

Cleaners – Any cleaner specifically designed for pavers may be used for color restoration or general cleaning. Follow manufacturer’s dilution rates and application procedures. Always test a small area to make sure the results are as expected.

 Sealers

  • Product may be sealed for aesthetic or cleanliness reasons but it is not required
  • Use any sealer approved for concrete pavers
  • Select type for desired aesthetics
  • Product must be cleaned before sealing
  • Always read and follow manufacturer’s application procedures
  • Always test a small area to make sure the results are as expected

The Americans with Disabilities Act Accessibility Guidelines (ADAAG) provides measurable criteria to determine compliance, not individual product evaluation. Gaps, joints or openings, greater than ½” horizontal and ¼” vertical should be avoided as they can disrupt wheelchair maneuvering (United States Access Board – Guidelines and Standards).

Download Technical Sheet
