SANDSTONE

Find a Dealer Request a Sample

Product Details Technical information Gallery Testimonials Technologies Articles

Colors

Sandstone is an ethically sourced natural stone product which provides contractors with a quality alternative to pavers. Its low water absorption, freeze-thaw durability and flexural strength along with superior sizing and calibration, makes this natural stone stand out from the rest. Available in slabs, coping and step units to create a complete cohesive design.

Calculate

Tech Sheet

Colors

Shape and size

PILLAR CAP 24"
600mm x 600mm x 65mm
23 5/8" x 23 5/8" x 2 5/8"

PILLAR CAP 28½"
725mm x 65mm x 725mm
28 5/8" x 2 5/8" x 28 5/8"

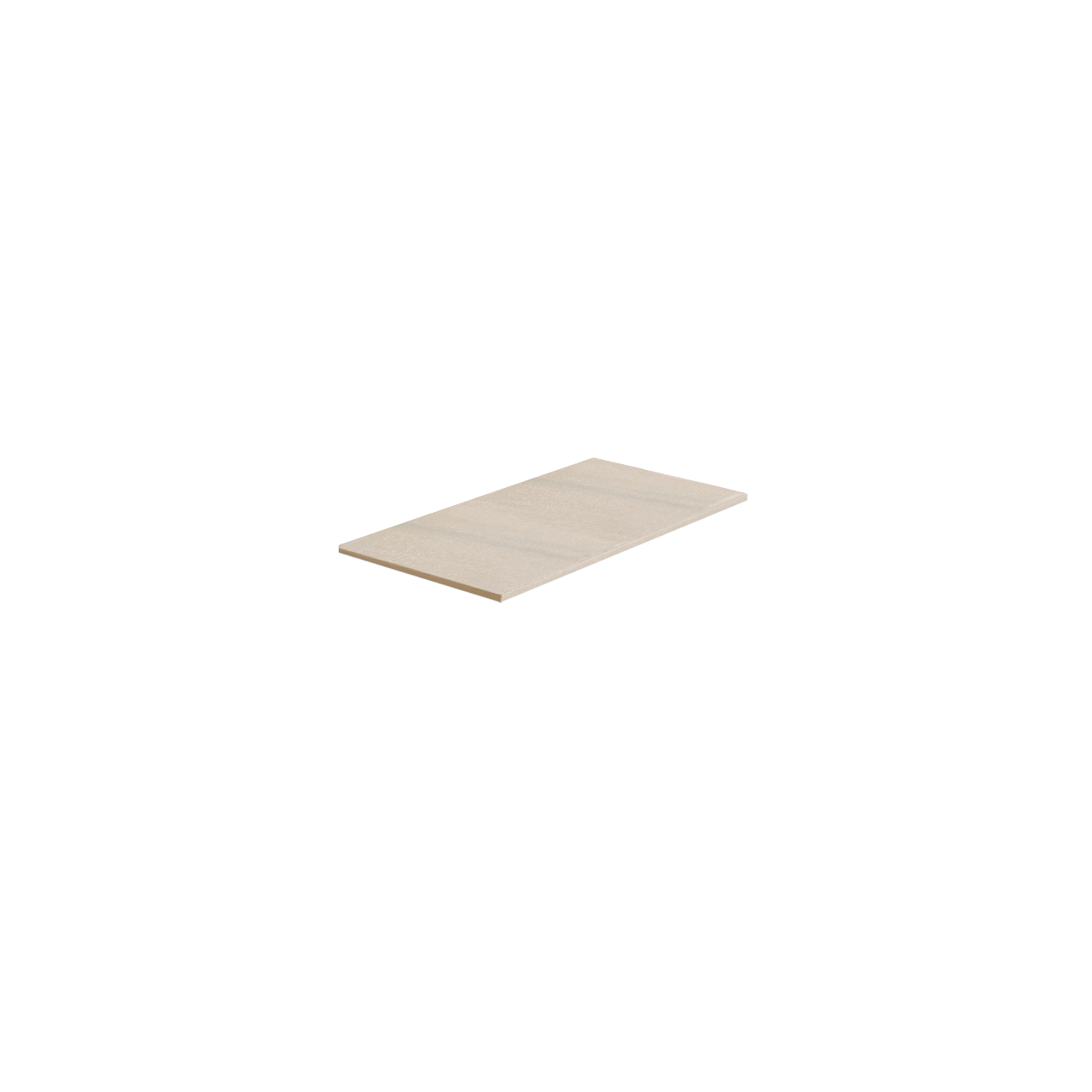

12"X24"
300mm x 600mm x 22mm
11 7/8" x 23 5/8" x 0 7/8"

18"X24"
450mm x 600mm x 22mm
17 3/4" x 23 5/8" x 0 7/8"

24"X24"
600mm x 600mm x 22mm
23 5/8" x 23 5/8" x 0 7/8"

24"X36"
600mm x 900mm x 22mm
23 5/8" x 35 1/2" x 0 7/8"

STEP 48"X16"
1,200mm x 150mm x 400mm
47 1/4" x 5 7/8" x 15 3/4"

COPING BULLNOSE
1,200mm x 50mm x 300mm
47 1/4" x 2" x 11 7/8"

COPING FULLNOSE

COPING FULLNOSE
1,200mm x 50mm x 350mm
47 1/4" x 2" x 13 7/8"

COPING ROCK FACED
1,200mm x 50mm x 300mm
47 1/4" x 2" x 11 7/8"

COPING ROCK FACED
1,200mm x 50mm x 350mm
47 1/4" x 2" x 13 7/8"

COPING W/ DL ROCK FACE
1,200mm x 50mm x 300mm
47 1/4" x 2" x 11 7/8"

PILLAR UNIT
725mm x 65mm x 725mm
28 5/8" x 2 5/8" x 28 5/8"

PILLAR CAP 24"
600mm x 600mm x 65mm
23 5/8" x 23 5/8" x 2 5/8"

PILLAR CAP 28½"
725mm x 65mm x 725mm
28 5/8" x 2 5/8" x 28 5/8"

12"X24"
300mm x 600mm x 22mm
11 7/8" x 23 5/8" x 0 7/8"

18"X24"
450mm x 600mm x 22mm
17 3/4" x 23 5/8" x 0 7/8"

24"X24"
600mm x 600mm x 22mm
23 5/8" x 23 5/8" x 0 7/8"

24"X36"
600mm x 900mm x 22mm
23 5/8" x 35 1/2" x 0 7/8"

STEP 48"X16"
1,200mm x 150mm x 400mm
47 1/4" x 5 7/8" x 15 3/4"

COPING BULLNOSE
1,200mm x 50mm x 300mm
47 1/4" x 2" x 11 7/8"

COPING FULLNOSE

COPING FULLNOSE
1,200mm x 50mm x 350mm
47 1/4" x 2" x 13 7/8"

COPING ROCK FACED
1,200mm x 50mm x 350mm
47 1/4" x 2" x 13 7/8"

COPING W/ DL ROCK FACE
1,200mm x 50mm x 300mm
47 1/4" x 2" x 11 7/8"

PILLAR UNIT
725mm x 65mm x 725mm
28 5/8" x 2 5/8" x 28 5/8"

Applications

Patio & Walkway

Pillars

Step

Technical information

Laying Patterns
Packaging
Things to know
Cross Sections

Select category

Laying Patterns

Laying Patterns
Packaging
Things to know
Cross Sections

LP NaturalStone Multi Unit F

LP NaturalStone Multi Unit K

LP NaturalStone 12x24 HB O

LP NaturalStone Multi Unit N

LP NaturalStone 12x24 SB Q

LP NaturalStone Multi Unit J

LP NaturalStone Multi Unit L

LP NaturalStone Multi Unit G

LP NaturalStone Multi Unit M

LP NaturalStone Multi Unit D

LP NaturalStone Multi Unit C

LP NaturalStone 12x24 RB A

LP NaturalStone Multi Unit H

LP NaturalStone Multi Unit E

LP NaturalStone Multi Unit H v2

LP NaturalStone 24x24 RB B

LP NaturalStone Multi Unit I

LP NaturalStone 24x24 SB P

Unit Thickness (mm)

Sq Ft per Crate

Sq Ft per Unit

Units per Crate

Lin Ft per Unit - Soldier

Lin Ft per Unit - Sailor

Lbs per Crate

Lbs per Unit

STEP 48"X16"

150

2,526

421

12"X24"

180

2,149

23.88

24"X36"

180

2,149.20

71.64

18"X24"

186

2,221

35.82

24"X24"

160

1,910.40

47.76

COPING BULLNOSE

2,028.25

101.41

COPING W/ DL ROCK FACE

2,116

PILLAR CAP 24"

1,914

136.71

PILLAR CAP 28½"

2,802

200.14

COPING ROCK FACED

2,116

105.80

COPING ROCK FACED

2,557.34

127.87

PILLAR UNIT

2,513.24

209.44

COPING FULLNOSE

2,557.34

127.87

THINGS TO KNOW

NATURAL STONE - SANDSTONE

Installation Manual – For complete installation information, download the manual here.

Over Concrete Installation – Sandstone must be installed on a stable base. The best way to achieve this is to mortar the units on to a poured concrete pad - preferably a new concrete pad, although existing concrete can be used. It is recommended that you have a minimum 4” of ¾” crusher run gravel under the pad for support and drainage, (use any road base gravel in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Special Notes: Concrete Direct Overlay –

Concrete integrity – concrete must be in good condition, and not crumbling
Drainage slope – concrete below must be sloped away from all buildings and structures
Base drainage - the area below the concrete must not be subject to frost movement
Jointing – Mortar joint recommended

Alternative Permeable Base – Sandstone may also be installed on a permeable base.

Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

Alternative Permeable Bedding Course – 1” thick of 1/8” clear open-graded chip stone – (ASTM No. 8 or 9) screeded over base.

Water Proofing

- When installing over a concrete pad, waterproofing the sandstone and the concrete pad is an important procedure to prevent discoloration of the sandstone. A bond/slurry coat should be brushed onto the concrete pad prior to applying the mortar bedding. Apply the same bond coat to the backs of each sandstone unit before placing.

- When installing over a permeable base, you only need to apply the slurry coat to the back of the sandstone.

Handling – Exercise caution when handling this product, as contact between its zero-bevel edges may cause damage.

Edge Restraint - Always install an edge restraint around the perimeter of any paver installation not restrained by building structures. “Spike in” edge restraints come in plastic and various metals and work well for most applications. A concrete curb or a “sub-surface concrete wedge” can also be installed to retain the edge.

Cleaners – Unilock has partnered with United Stonecare, a UK company with over 30 years experience in the field of specialized cleaner and sealer products for natural stone. View products here: https://www.unicare-products.com/.

Download Technical Sheet

Natural Stone Coping and Deck

Natural Stone on Granular Base with Permeable Setting Bed

Natural Stone on Granular Base with Sand Setting Bed

Natural Stone Overlay for Smooth Concrete Surfaces

Natural Stone Overlay for Uneven Concrete Surfaces

Detail Estate Wall Steps

Detail Lineo Dimensional Stone Steps

Detail Siena Edge Steps

Detail U-Cara Steps
