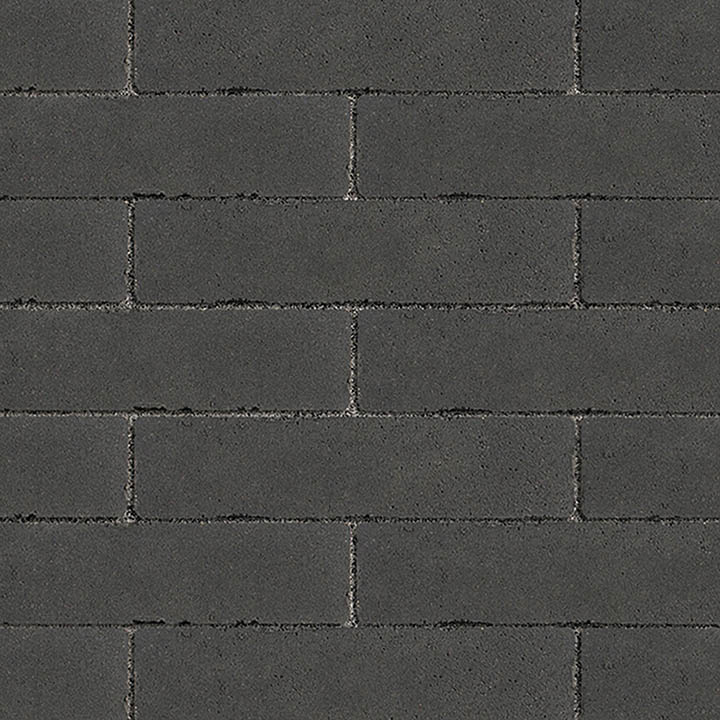

Create a one-of-a-kind look for your customer with Mattoni pavers from Unilock. A contemporary take on the classic Roman brick street paver, this gently antiqued paver has a timeworn appearance that is suited to both modern and rustic style projects. The slim dimension lends itself to classic herringbone patterns, accent borders and winding walkways that require little or no cutting. The historic visual appeal of Mattoni, the soft EnduraColor colors, coupled with a fine surface aggregate make this an easy product to propose to your customer.
Mattoni is based on a traditional narrow street paver, and incorporates a clay-like texture and pre-weathered edges for an authentic look and feel.
Recommended Base Stabilization – one layer of DriveGrid™" stabilization grid between subgrade and base material. Recommended depth 8” to 10” below pavers for maximum stability and performance. Use under Standard Base or Permeable Base.
Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).
Standard Bedding Course – 1” thick of coarse sand– in accordance with ASTM-D2940 screeded over base.
Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)
Alternative Permeable Bedding Course – 1” thick of 1/4” clear open-graded chip stone – (ASTM No. 8) screeded over base.
Special Note: Concrete Direct Overlay – In some areas of the country and in some applications pavers are very successfully placed directly over concrete. Concrete as a base is in itself quite strong, but it can affect the structural integrity of the paver particularly in vehicular applications, where the concrete below is sub-par. The following considerations must be taken into account to insure that the concrete below the surface is ideal:
Concrete integrity – concrete must be in good condition, and not crumbling
Drainage slope – concrete below must be sloped away from all buildings and structures
Drainage holes – In lowest areas of the concrete, drill 1” holes in concrete (on 12” centers) and fill holes with ¼” chip (ASTM No. 8)
Base drainage - the area below the concrete must not be subject to frost movement
Surface - surface must be totally smooth and flat equivalent to the desired finished surface
Waterproofing - may be required when installing pavers over concrete where there is a basement or cold cellar below. Install an impervious rubber membrane over the surface prior to installing any pavers over the surface.
Jointing Sand - Use an impervious polymeric sand when installing over concrete
Jointing Material and Joint Stabilization
All sands must meet ASTM C144 or C33 Specifications. For best appearance and optimal performance,, keep jointing materials approximately 1/8” below the chamfer (bevel edge) of the paver.
Good Option: Ordinary sharp jointing sand in accordance with ASTM C144 or C33. (Common name: Concrete Sand)
Best Option: Any polymeric sand or ordinary concrete sand stabilized by a water-based or solvent-based joint sand stabilizer sealer. Always follow manufacturer’s application specifications and requirements.
Handling – This product has no special handling requirements.
Edge Restraint - Always install an edge restraint around the perimeter of any paver installation not restrained by building structures. Spike-in edge restraints come in plastic and metal and work well for most applications. A concrete curb or a sub-surface concrete wedge can also be installed to retain the edge.
Paver Compaction - Always use a protective polymer pad on the bottom of your compactor when doing the final compaction of the pavers. An alternative is to use a rubber-roller compactor for the final compaction.
Cleaners – Any cleaner specifically designed for pavers may be used for color restoration or general cleaning. Follow manufacturer’s dilution rates and application procedures. Always test a small area to make sure the results are as expected.
Product may be sealed for aesthetic or cleanliness reasons but it is not required
Use any sealer approved for concrete pavers
Select type for desired aesthetics
Product must be cleaned before sealing
Always read and follow manufacturer’s application procedures
Always test a small area to make sure the results are as expected
The online HTML CheatSheet website should be the first bookmark of every web developer. It is the best one-page resource to generate the desired markup.
The Americans with Disabilities Act Accessibility Guidelines (ADAAG) provides measurable criteria to determine compliance, not individual product evaluation. Gaps, joints or openings, greater than ½” horizontal and ¼” vertical should be avoided as they can disrupt wheelchair maneuvering (United States Access Board – Guidelines and Standards).
The Mattoni product has the modern take on a classic Roman brick, ideal for making a popular herringbone pattern design and for modern accents.
