BRUSSELS BLOCK®

Colors

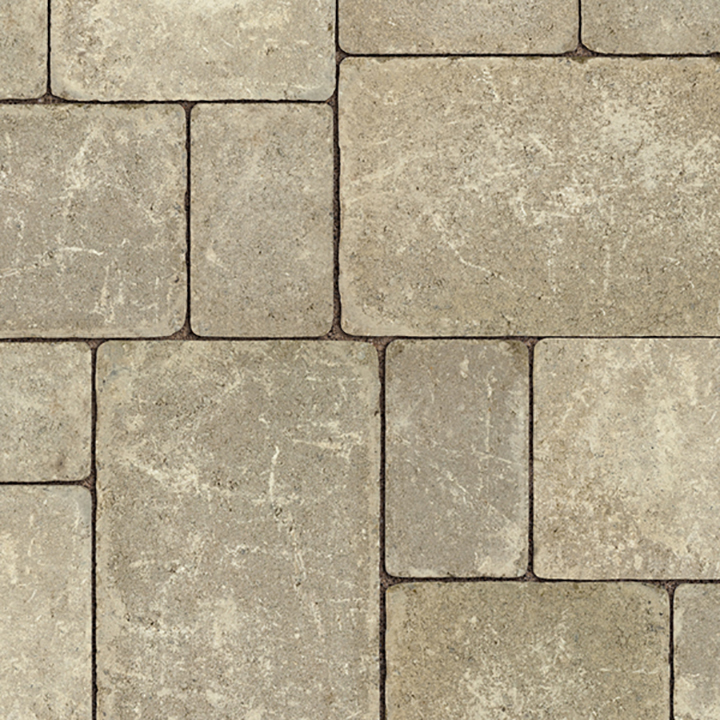

Introduced to North America by Unilock in 1993, Brussels Block is the original tumbled paver. These pavers are literally tumbled in a drum to achieve an antiqued patina that brings timeless warmth and a relaxed appearance to any project. Working with Brussels Block pavers is a pleasure from start to finish. Handling, laying and cutting is easier because of their relaxed appearance, making them more forgiving when it comes to installation. For an extra bit of ‘pop’ consider accenting your next Brussels Block project with Copthorne or Courtstone.
Colors
Shape and size

HALF
104mm x 173mm x 70mm
4" x 6 7/8" x 2 3/4"

HALF
104mm x 173mm x 70mm
4" x 6 7/8" x 2 3/4"

HALF
104mm x 173mm x 70mm
4" x 6 7/8" x 2 3/4"

HALF
104mm x 173mm x 70mm
4" x 6 7/8" x 2 3/4"

STANDARD
173mm x 208mm x 70mm
6 7/8" x 8 1/4" x 2 3/4"

STANDARD
173mm x 208mm x 70mm
6 7/8" x 8 1/4" x 2 3/4"

STANDARD
173mm x 208mm x 70mm
6 7/8" x 8 1/4" x 2 3/4"

STANDARD
173mm x 208mm x 70mm
6 7/8" x 8 1/4" x 2 3/4"

XL
208mm x 348mm x 70mm
8 1/4" x 13 3/4" x 2 3/4"

XL
208mm x 348mm x 70mm
8 1/4" x 13 3/4" x 2 3/4"

XL
208mm x 348mm x 70mm
8 1/4" x 13 3/4" x 2 3/4"

XL
208mm x 348mm x 70mm
8 1/4" x 13 3/4" x 2 3/4"

HALF
104mm x 173mm x 70mm
4" x 6 7/8" x 2 3/4"

STANDARD
173mm x 208mm x 70mm
6 7/8" x 8 1/4" x 2 3/4"

XL
208mm x 348mm x 70mm
8 1/4" x 13 3/4" x 2 3/4"

Technologies
Applications
Borders Accents e1632317158754
Borders and Accents
Light Duty Vehicular
Pedestrian e1632317129849
Residential & Commercial Pedestrian
Roadways Streets e1632317106171
Residential Driveway
Recommended Equipment
Standing Vacuum Lifter
Technical information
  • Laying Patterns
  • Packaging
  • Things to know
  • Cross Sections
Select category
Laying Patterns
  • Laying Patterns
  • Packaging
  • Things to know
  • Cross Sections
LP Brussels Multi Unit Random AF
LP Brussels Multi Unit Random AF
LP Brussels Multi Unit Random W
LP Brussels Multi Unit Random W
LP Brussels Multi Unit Random AC
LP Brussels Multi Unit Random AC
LP Brussels Multi Unit Random AD
LP Brussels Multi Unit Random AD
LP Brussels Multi Unit Random Z
LP Brussels Multi Unit Random Z
LP Brussels Multi Unit Random Y
LP Brussels Multi Unit Random Y
LP Brussels Multi Unit Random AE
LP Brussels Multi Unit Random AE
LP Brussels Multi Unit Random AH
LP Brussels Multi Unit Random AH
LP Brussels Multi Unit Random X
LP Brussels Multi Unit Random X
LP Brussels Multi Unit Random P
LP Brussels Multi Unit Random P
LP Brussels Multi Unit Random O
LP Brussels Multi Unit Random O
LP Brussels Multi Unit Random H
LP Brussels Multi Unit Random H
LP Brussels Multi Unit Random K
LP Brussels Multi Unit Random K
LP Brussels Multi Unit Random Q
LP Brussels Multi Unit Random Q
LP Brussels Multi Unit Random I
LP Brussels Multi Unit Random I
LP Brussels Multi Unit Random J
LP Brussels Multi Unit Random J
Unit Thickness (mm)
Layers per Bundle
Sq Ft per Bundle
Sq Ft per Layer
Sq Ft per Section
Sq Ft per Unit
Units per Bundle
Units per Layer
Units per Section
Lin Ft per Bundle - Soldier
Lin Ft per Section - Soldier
Lin Ft per Layer - Soldier
Lin Ft per Unit - Soldier
Lin Ft per Bundle - Sailor
Lin Ft per Section - Sailor
Lin Ft per Layer - Sailor
Lbs per Bundle
Lbs per Layer
Lbs per Section
Lbs per Unit
XL
70
10
95.70
9.57
31.90
0.80
120
12
40
81.89
27.30
8.19
0.68
137.01
45.67
13.70
3,112.33
311.23
1,037.44
25.94
STANDARD
70
8
94.91
11.86
15.82
0.40
240
30
40
136.22
22.70
17.03
0.57
163.78
27.30
20.47
3,110.33
388.79
518.39
12.96
HALF
70
8
88.70
11.09
12.67
0.20
448
56
64
152.86
21.84
19.11
0.34
254.28
36.33
31.78
2,865
358.13
409.29
6.40
THINGS TO KNOW

BRUSSELS BLOCK®

Brussels Block is the original tumbled concrete paver in North America and still our most popular. The relaxed appearance of Brussels Block fits in practically any design situation. Consider accenting or bordering with Copthorne® for a very striking yet classic look.

Recommended Base Stabilization – one layer of DriveGrid™" stabilization grid between subgrade and base material. Recommended depth 8” to 10” below pavers for maximum stability and performance. Use under Standard Base or Permeable Base.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Standard Bedding Course – 1” thick of coarse sand– in accordance with ASTM-D2940 screeded over base.

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

Alternative Permeable Bedding Course – 1” thick of 1/4” clear open-graded chip stone – (ASTM No. 8) screeded over base.

Special Note: Concrete Direct Overlay – In some areas of the country and in some applications pavers are very successfully placed directly over concrete. Concrete as a base is in itself quite strong, but it can affect the structural integrity of the paver particularly in vehicular applications, where the concrete below is sub-par. The following considerations must be taken into account to insure that the concrete below the surface is ideal:

  1. Concrete integrity – concrete must be in good condition, and not crumbling
  2. Drainage slope – concrete below must be sloped away from all buildings and structures
  3. Drainage holes – In lowest areas of the concrete, drill 1” holes in concrete (on 12” centers) and fill holes with ¼” chip (ASTM No. 8)
  4. Base drainage - the area below the concrete must not be subject to frost movement
  5. Surface - surface must be totally smooth and flat equivalent to the desired finished surface
  6. Waterproofing - may be required when installing pavers over concrete where there is a basement or cold cellar below. Install an impervious rubber membrane over the surface prior to installing any pavers over the surface.
  7. Jointing Sand - Use an impervious polymeric sand when installing over concrete

Jointing Material and Joint Stabilization

All sands must meet ASTM C144 or C33 Specifications. For best appearance and optimal performance,, keep jointing materials approximately 1/8” below the chamfer (bevel edge) of the paver.

Good Option: Ordinary sharp jointing sand in accordance with ASTM C144 or C33. (Common name: Concrete Sand)

Best Option: Any polymeric sand or ordinary concrete sand stabilized by a water-based or solvent-based joint sand stabilizer sealer. Always follow manufacturer’s application specifications and requirements.

Handling – This product has no special handling requirements.

Edge Restraint - Always install an edge restraint around the perimeter of any paver installation not restrained by building structures. Spike-in edge restraints come in plastic and metal and work well for most applications. A concrete curb or a sub-surface concrete wedge can also be installed to retain the edge.

Paver Compaction - Always use a protective polymer pad on the bottom of your compactor when doing the final compaction of the pavers. An alternative is to use a rubber-roller compactor for the final compaction.

Cleaners – Any cleaner specifically designed for pavers may be used for color restoration or general cleaning. Follow manufacturer’s dilution rates and application procedures. Always test a small area to make sure the results are as expected.

Sealers

  • Product may be sealed for aesthetic or cleanliness reasons but it is not required
  • Use any sealer approved for concrete pavers
  • Select type for desired aesthetics
  • Product must be cleaned before sealing
  • Always read and follow manufacturer’s application procedures
  • Always test a small area to make sure the results are as expected

The Americans with Disabilities Act Accessibility Guidelines (ADAAG) provides measurable criteria to determine compliance, not individual product evaluation. Gaps, joints or openings, greater than ½” horizontal and ¼” vertical should be avoided as they can disrupt wheelchair maneuvering (United States Access Board – Guidelines and Standards).
