Colors
Estate Wall is a 3-stone random bundle product which can be used for almost every hardscape application. Learning to install Estate Wall is quick and easy which is important when you are training new staff regularly. The split-face finish of Estate Wall can be used for both rustic and modern design applications including straight or curved walls, planters, steps, pillars, fire features, grill islands and more.
Colors
Shape and size
Sold individually

CORNER 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"

CORNER 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"

CORNER 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"

CORNER 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"

Random Bundle

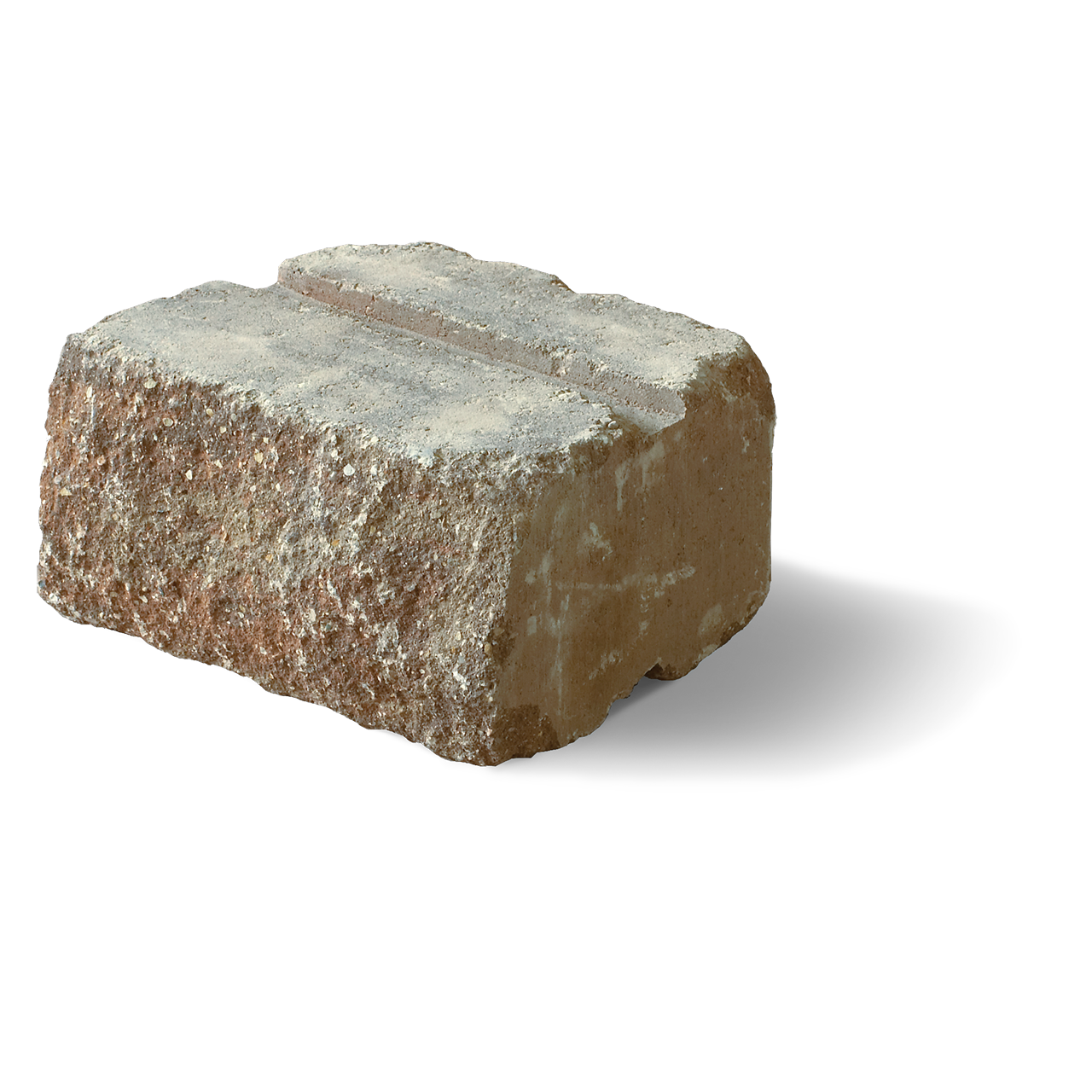

LARGE 6"
375mm x 150mm x 230mm
14 7/8" x 5 7/8" x 9"

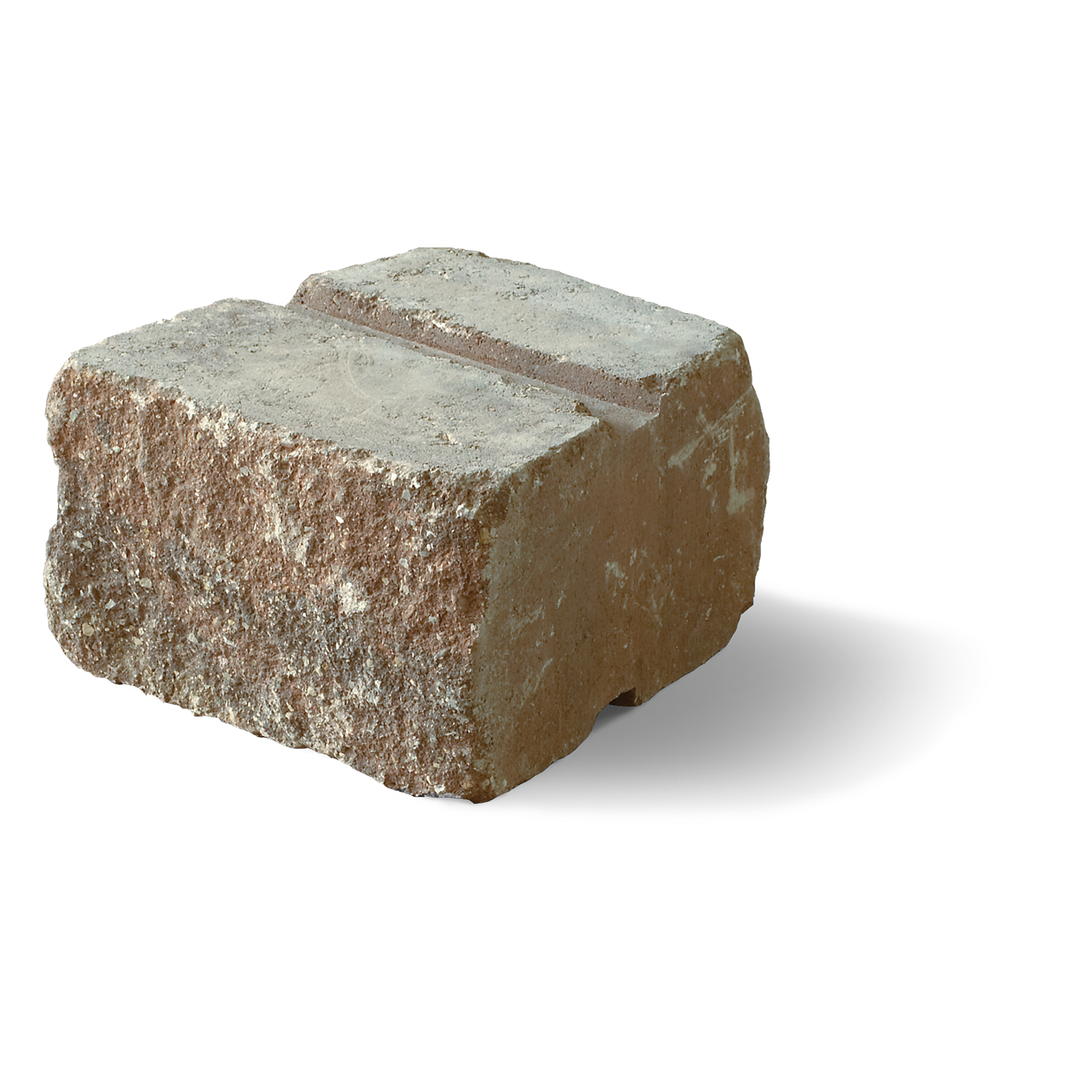

MEDIUM 6"
300mm x 150mm x 230mm
11 7/8" x 5 7/8" x 9"

SMALL 6"
228mm x 150mm x 230mm
9" x 5 7/8" x 9"

LARGE 6"
375mm x 150mm x 230mm
14 7/8" x 5 7/8" x 9"

MEDIUM 6"
300mm x 150mm x 230mm
11 7/8" x 5 7/8" x 9"

SMALL 6"
228mm x 150mm x 230mm
9" x 5 7/8" x 9"

LARGE 6"
375mm x 150mm x 230mm
14 7/8" x 5 7/8" x 9"

MEDIUM 6"
300mm x 150mm x 230mm
11 7/8" x 5 7/8" x 9"

SMALL 6"
228mm x 150mm x 230mm
9" x 5 7/8" x 9"

LARGE 6"
375mm x 150mm x 230mm
14 7/8" x 5 7/8" x 9"

MEDIUM 6"
300mm x 150mm x 230mm
11 7/8" x 5 7/8" x 9"

SMALL 6"
228mm x 150mm x 230mm
9" x 5 7/8" x 9"

Technologies
Applications
Fire Feature e1632317154571
Fire Features
Garden Wall e1632317150577
Garden Walls
Outdoor Kitchen e1632317137972
Outdoor Kitchen
Pillar e1632317122239
Pillars
Water Feature e1632317028508
Water Features
Technical information
  • Packaging
  • Things to know
  • Cross Sections
Select category
Packaging
  • Packaging
  • Things to know
  • Cross Sections
height_1Layers per BundlePer Bundle SectionSoldier LnFt Per SectionLin Ft per Bundle - SoldierUnits Per SectionUnits per BundleUnits per LayerUnits per FcFtLbs per LayerLbs Per SectionLbs per BundleLbs per UnitLin Ft per Layer - SoldierLin Ft per Unit - SoldierFcFt per LayerFcFt per BundleFcFt per Unit
Random BundleCORNER 6"
Layers per Bundle44
Per Bundle Section44
Soldier LnFt Per Section10.648.32
Lin Ft per Bundle - Soldier42.5633.28
Units Per Section128
Units per Bundle4832
Units per Layer128
Units per FcFt21.92031
Lbs per Layer574.2444
Lbs Per Section574.2444
Lbs per Bundle2296.81776
Lbs per Unit47.8555.5
Lin Ft per Layer - Soldier10.648.32
Lin Ft per Unit - Soldier0.886671.04
FcFt per Layer64.166
FcFt per Bundle2416.664
FcFt per Unit0.50.52075
THINGS TO KNOW

ESTATE WALL™;

Add a regal touch to your home with a natural ledge rock look. The unique antique-textured finish of this majestic wall recreates the appearance of aged, natural rock. Create virtually any seat wall, planter, step or pillar design with these multiple length units.

Applications – Design and build projects such as planters, steps, grill islands, pillars, seat walls and water features. Can be used for straight and curved installations (Radius 5’ is the tightest radius).

Capacity – Gravity walls up to 39” (1m). Geogrid reinforced walls up to 10 ft. (3 m).

Recommended Base Stabilization – one layer of DriveGrid™ stabilization grid between subgrade and base material. Use under Standard Base or Permeable Base.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together).

Leveling – Leveling retaining wall blocks directly on top of gravel is tedious and generally does not yield the best results. U-Grip Base units or universal base pads are recommended under all Unilock walls for improved accuracy and speedier installation. Additional benefits include long term structural integrity and an overall better appearance. Poured concrete leveling pads, reinforced with rebar, are also a great way to accomplish leveling, particularly for larger installations. You must ensure that the concrete is poured and finished perfectly in order to achieve a good visual appearance.

Connection – features channels on top and bottom of each stone which are connected using a small insert provided with the system. Use appropriate concrete adhesive for connection between units where an insert has been removed or omitted. Always read adhesive manufacturers’ directions prior to gluing.

Handling – No specific handling instructions.

Coping - This wall requires coping. Choose a manufactured coping such as Unilock Universal Coping or any of our natural stone coping options. Install with tight joints or 3/16” gap between units and amend with an exterior latex caulking. Cutting may be required; a diamond blade saw is required to cut coping properly. Glue all coping using a specially formulated concrete adhesive that is strong and will not break down over time. Always read adhesive manufacturers’ directions prior to gluing.

Download Technical Sheet
